Low-voltage AC/DC Integrated Cabinet
Photovoltaic storage

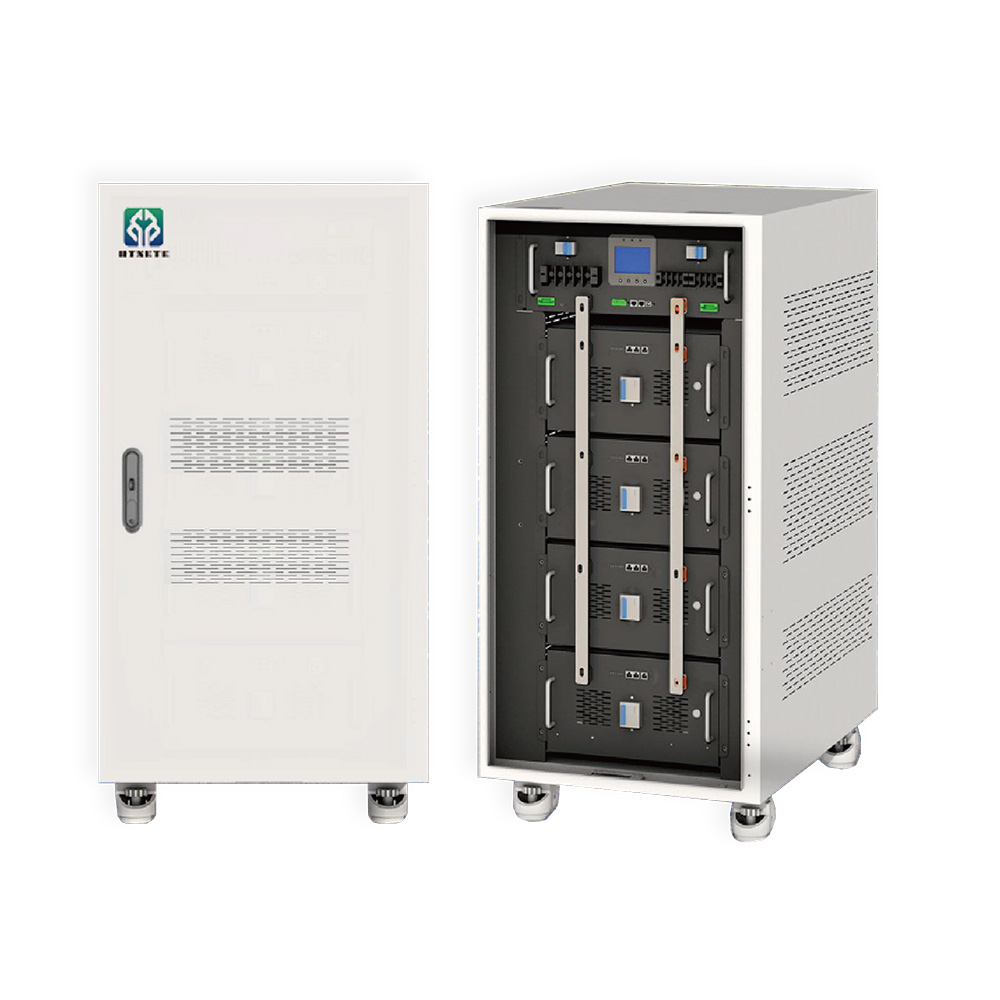

Low-voltage AC/DC Integrated Cabinet

    Competitive Price High-safety low-voltage AC/DC integrated cabinet, supporting solar panel and AC power, with Li-batteries and inverters. The system offers flexible configurations with energy capacities of 43KWh/51.2V, 48KWh/51.2V, 57KWh/51.2V, or 64KWh/51.2V, a power output of 20KW or 30KW, and an alternating voltage of 230Vac or 400Vac/230Vac.

    Product Features

    01
    advan_ico1

    Supports photovoltaic /mains power access

    ◎ Flexible and Reliable Dual Power Input.This advanced AC/DC integrated energy storage cabinet supports dual-mode input from photovoltaic and utility power, offering flexible and scalable energy access capabilities. Users can intelligently switch between or blend clean solar power and conventional utility power based on actual application scenarios, effectively enhancing energy utilization efficiency and ensuring continuous, stable system operation under varying conditions.

    02
    advan_ico2

    Integrated lithium battery and inverter

    ◎ Core components are exclusively sourced from industry-leading brands to ensure superior quality and reliability. Each product undergoes a comprehensive testing series—including extreme environmental simulations, accelerated aging tests, long-term cyclic life validation, and rigorous multi-stress testing. These processes guarantee stable power output and extended service life, even under complex and demanding operating conditions. As a result, maintenance costs are minimized while power supply continuity and operational safety for end-users are maximized.Premium components, rigorously tested to ensure exceptional reliability and sustained safety.

    03
    advan_ico3

    High security and high reliability

    ◎ Multi-Layer Protection, Safe and Reliable.The system incorporates multi-tiered safety mechanisms, enhancing security from the cell level to the system level.The battery system utilizes chemistry with outstanding thermal stability . The inverter unit also features complete electrical protection functions.We have established a multi-layered safety protection system.

    04
    advan_ico4

    Higher cost performance

    ◎ Exceptional value for money. This product delivers outstanding cost-effectiveness at a highly competitive price point with low maintenance costs, surpassing other comparable offerings in the market. It represents the ideal practical choice for industrial and commercial energy storage applications, combining safety, practicality, efficiency, and affordability.

    01

    Product parameter

    Style

    BT43-20

    BT48-30

    BT57-30

    BT64-30

    Key Specifications

    43KWh+20KW

    48KWh+30KW

    57KWh+30KW

    64KWh+30KW

    Energy capacity of battery

    43KWh/51.2V

    48KWh/51.2V

    57KWh/51.2V

    64KWh/51.2V

    PCS

    20KW

    30KW

    30KW

    30KW

    MPPT power

    33KW(Route 6)

    33KW(Route 6)

    33KW(Route 8)

    33KW(Route 8)

    MPPT scope

    90~450Vdc

    90~450Vdc

    90~450Vdc

    90~450Vdc

    Alternating voltage

    230Vac

    400Vac/230Vac

    400Vac/230Vac

    400Vac/230Vac

    Level of protection

    IP20

    IP20

    IP20

    IP20

    Communication mode

    RS485/WiFi

    RS485/WiFi

    RS485/WiFi

    RS485/WiFi

    Size/mm

    670*900*1560mm

    670*900*1560mm

    670*900*1560mm

    670*900*1560mm

    Weight/kg

    550kg(about)

    550kg(about)

    650kg(about)

    650kg(about)

    Application case

    Factories and manufacturing industries, Large commercial buildings, Data centers

    Data centers

    Data centers

    Industrial Automation & Process Control

    Industrial Automation & Process Control

    Telecommunication Base Stations

    Telecommunication Base Stations
