Photovoltaic/Storage/Diesel

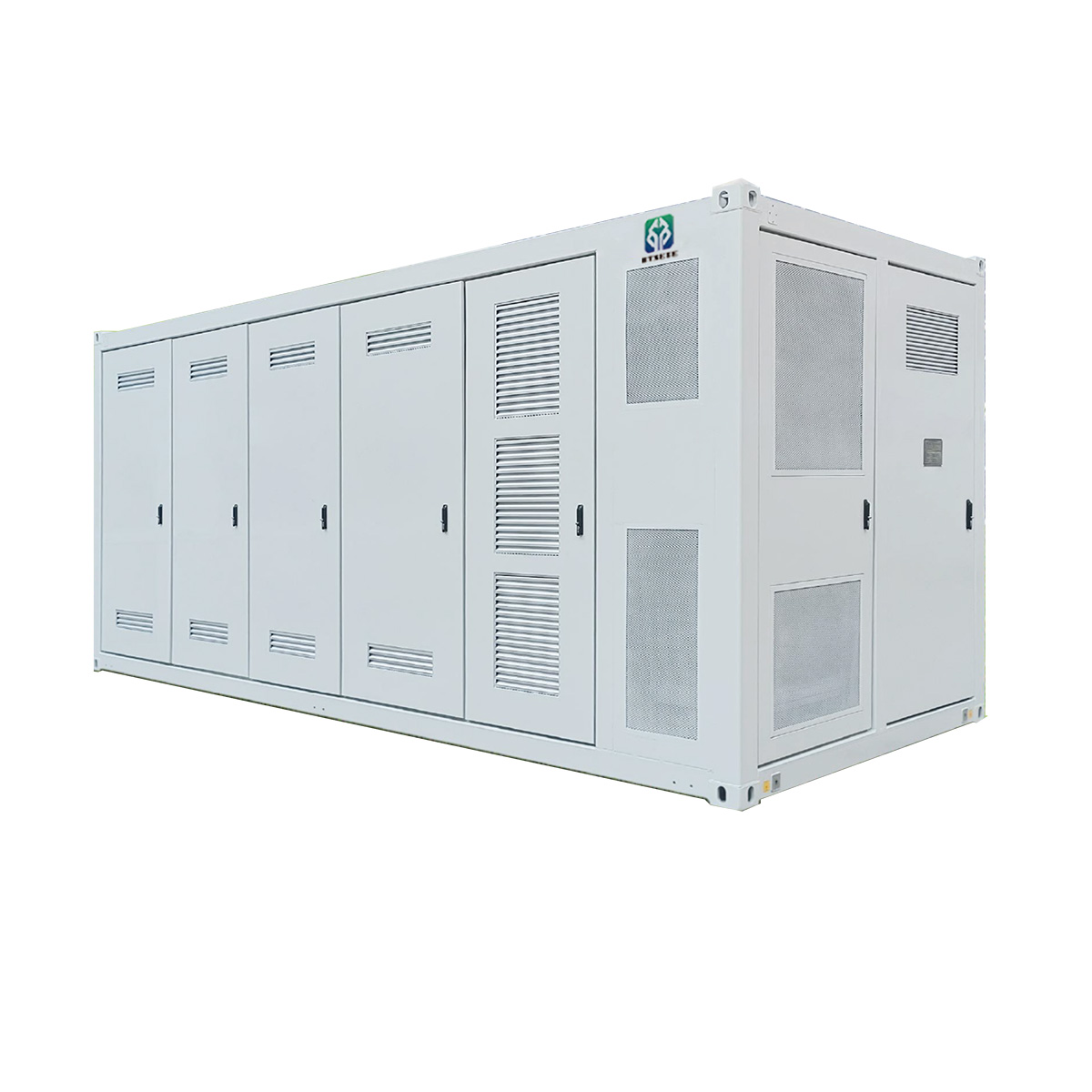

Photovoltaic storage diesel AC/DC integrated cabin (Liquid cooling)

Automotive-grade process safety and reliability, with a battery capacity of 2MWh or 4MWh and rated AC power of 1000KW or 2000KW. The system is super safe, featuring 3-level automatic fire prevention, monitoring, and extinguishing. It achieves seamless integration of BMS, PCS, and EMS, and supports rated grid voltages of 400Vac/230Vac. With MPPT power of 960KW or 1920KW and an MPPT voltage range of 250~850Vdc, it can support automatic off-grid design in case of power failure.

Request a quote

Product Features

Automotive-grade process safety and reliability

◎ Manufactured with automotive-grade standards for superior safety and long-term operational reliability.

Super safe, with 3-level automatic fire prevention monitoring and extinguishing

◎ Features a triple-layer automatic fire protection system for continuous monitoring and instant suppression.

Integration BMS/PCS/EMS

◎ Seamlessly integrates Battery Management, Power Conversion, and Energy Management Systems for optimized performance.

It can support automatic off-grid design in case of power failure

◎ Enables automatic transition to off-grid mode during power outages for uninterrupted supply.

Product parameter

Style	BT-20GP-2MWH-1000KW	BT-40GP-4MWH-2000KW
Battery capacity	2MWh	4MWh
Rated AC power	1000KW	2000KW
Rated alternating current	1500A	3000A
Rated grid voltage	400Vac/230Vac	400Vac/230Vac
MPPT power	960KW	1920KW
Maximum voltage of MPPT	250~850Vdc	250~850Vdc
Protection Level	IP54	IP54
Size/mm	609024382591mm	1219024382591mm
Weight/kg	24000kg(about)	45500kg(about)
