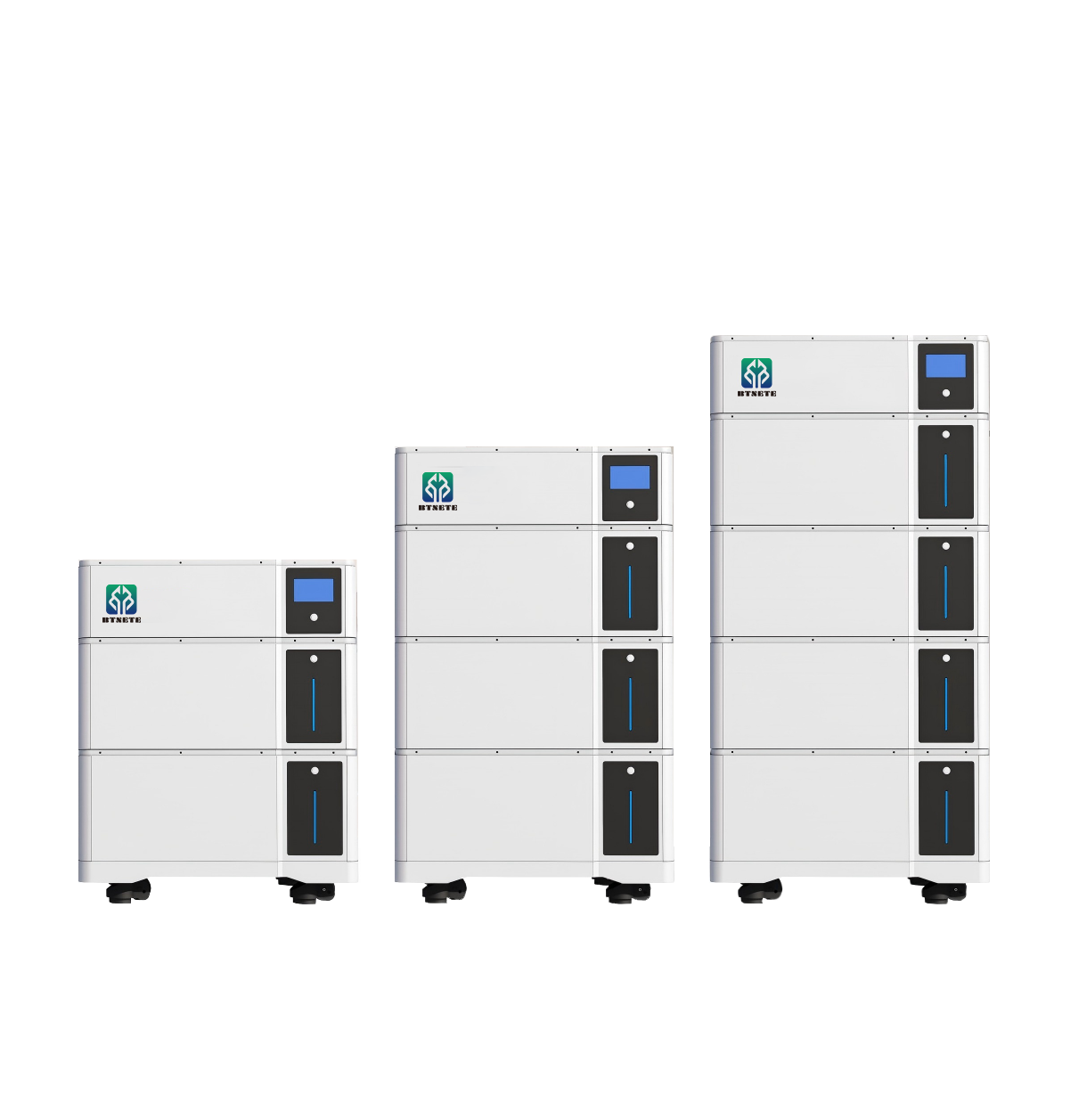

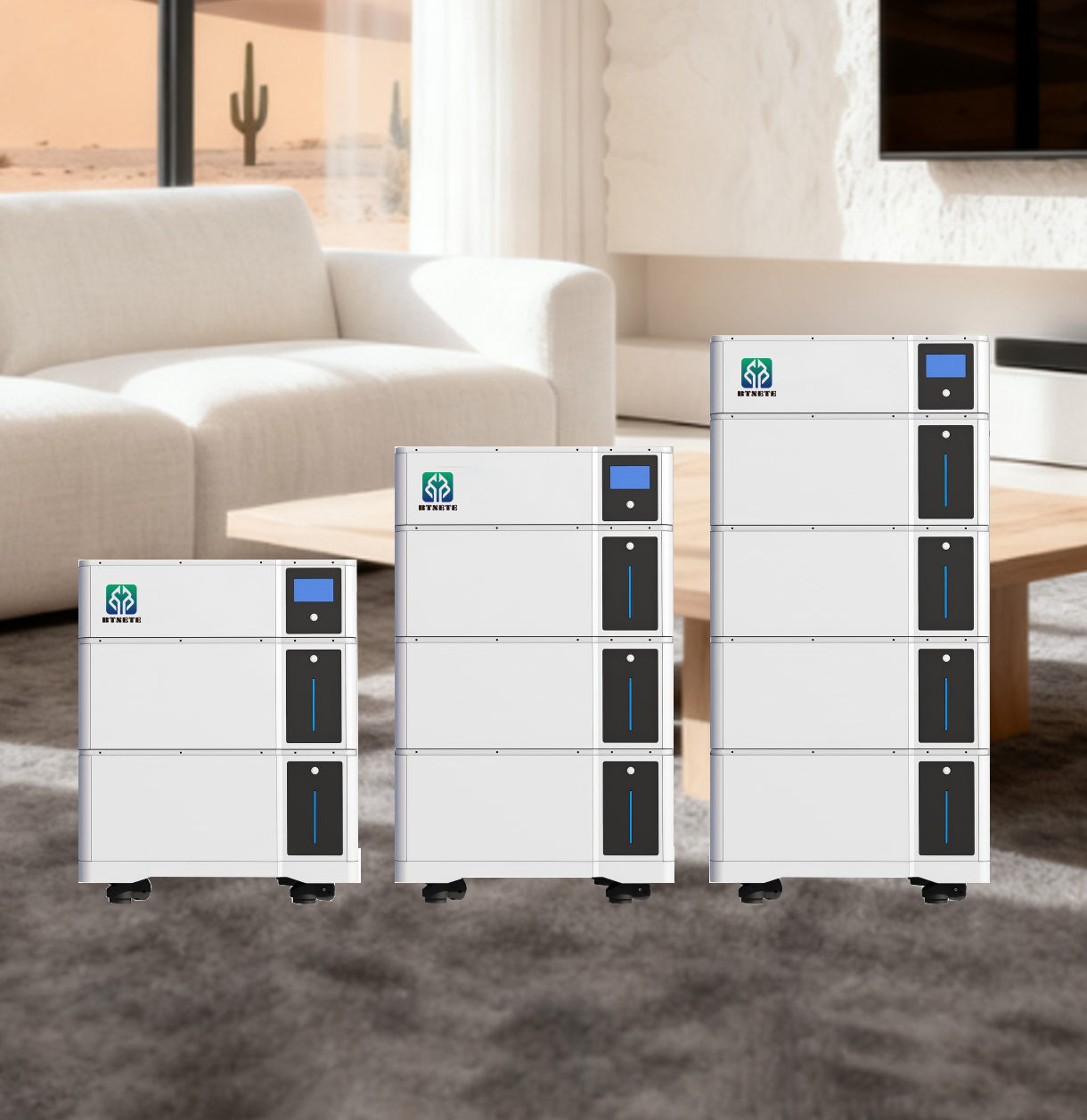

Stackable All-In-One ESS
All-In-One ESS

Stackable All-In-One ESS

  • Style 16kWh+12kW
  • Style 32kWh+12kW
  • Style 48kWh+12kW
  • Style 64kWh+12kW

Scalable from 16kWh to 64kWh, all with a 12kW inverter, this highly integrated system combines PV and AC charging with an integrated UPS function for easy installation and flexible expansion.

Product Features

01
advan_ico1

Expand power as needed and assemble freely

◎ Our stackable system is built for true flexibility, allowing you to expand your energy capacity and power output by freely assembling multiple units to meet your household's growing demands.The expansion process is straightforward and requires no complex operations.
02
advan_ico2

Integrated PV and AC charging

◎ This device seamlessly integrates photovoltaic power generation with AC charging functionality, empowering you to manage energy around the clock. During daylight hours, it charges using solar power, while at night or during periods of increased electricity demand, it effortlessly switches to grid power supply. This enables uninterrupted energy management day and night, ensuring a continuous and stable energy supply. Capacity can be flexibly expanded to meet peak electricity demands without complex operations or restrictive upgrades. System expansion can be completed in just a few simple steps.
03
advan_ico3

High integration and easy installation

◎ The system adopts a highly integrated all-in-one design, which combines key components into a compact chassis, achieving a very simple setup process, greatly reducing installation time and complexity for installers.This intelligent energy synergy maximizes energy savings, reduces your carbon footprint, and gives you complete control over your electricity usage 24/7.
04
advan_ico4

Integrated UPS function

◎ Our built-in uninterruptible power supply (UPS) function. Never face a power disruption again,our system delivers near-instantaneous backup power the moment the grid fails—switching so seamlessly that your essential devices won’t even flicker. Keep your lights on, security active, Wi-Fi running, and computers operational through any outage. It’s more than just backup power; it’s uninterrupted comfort, security, and productivity for your modern home. Stay powered, stay protected—no matter what .
01

Product parameter

Style

16kWh+12kW

32kWh+12kW

48kWh+12kW

64kWh+12kW

Battery

Battery Type

LiFePO4 Battery

LiFePO4 Battery

LiFePO4 Battery

LiFePO4 Battery

Battery Energy

16kWh

32kWh

48kWh

64kWh

Nominal Voltage

51.2V

51.2V

51.2V

51.2V

Rated Capacity

314Ah

314Ah*2

314Ah*3

314Ah*4

Voltage Range

42.0~58.0V

42.0~58.0V

42.0~58.0V

42.0~58.0V

PV

Max.Power

6kW*2

6kW*2

6kW*2

6kW*2

MPPT Voltage Range

90~450Vdc

90~450Vdc

90~450Vdc

90~450Vdc

Max.PV Input Current

22A+22A

22A+22A

22A+22A

22A+22A

AC Output

Rated Power

12kW

12kW

12kW

12kW

AC Voltage

230Vac±5%

230Vac±5%

230Vac±5%

230Vac±5%

AC Frequency

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Efficiency

≤94%

≤94%

≤94%

≤94%

Transfer Time

<20ms

<20ms

<20ms

<20ms

Waveform

Pure sine wave

Pure sine wave

Pure sine wave

Pure sine wave

AC Input

Rated AC Voltage

230Vac

230Vac

230Vac

230Vac

AC Voltage Range

170~280Vac(for PC)90~280Vac(for Applis)

170~280Vac(for PC)90~280Vac(for Applis)

170~280Vac(for PC)90~280Vac(for Applis)

170~280Vac(for PC)90~280Vac(for Applis)

Frequency Range

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

General Parameters

Altitude

≤2000m

≤2000m

≤2000m

≤2000m

Humidity

5%~95%

5%~95%

5%~95%

5%~95%

Work Temperature

-10℃~50℃

-10℃~50℃

-10℃~50℃

-10℃~50℃

IP Grade

IP20

IP20

IP20

IP20

Communication

RS485/WiFi

RS485/WiFi

RS485/WiFi

RS485/WiFi

Size

663*550*590mm

663*550*854mm

663*550*1118mm

663*550*1382mm

Weight(kg)

112kg(about)

208kg(about)

208kg(about)

400kg(about)

Application case

Residential Energy Storage

Residential Energy Storage-1

Residential Energy Storage

Residential Energy Storage

Residential Energy Storage
